VQMA-3
HD Software Video Analyzer and Scope

VQMA-3 measures the quality of captured YUV/BMP video files:

VQMA-3 Datasheet

and
DVI/HDMI/DP/LVDS/SDI YUV/RGB stream data:

VQTS-300 – HDMI/DP/LVDS Stream & Video Quality Analysis System,

VQTS-200 – 3G/HD-SDI/SDI/HDMI Video Generator-Analyzer

VQMA-3 brings the proven reliable objective analysis methodology
to 21st Century video QA/QC environment

• VQMA is a self-contained software solution, replacing expensive and bulky boxes
• Ideal tool for development labs, software developers and high volume manufacturers
• Easy-to-use tool, instantly revealing your video camera or other video device performance

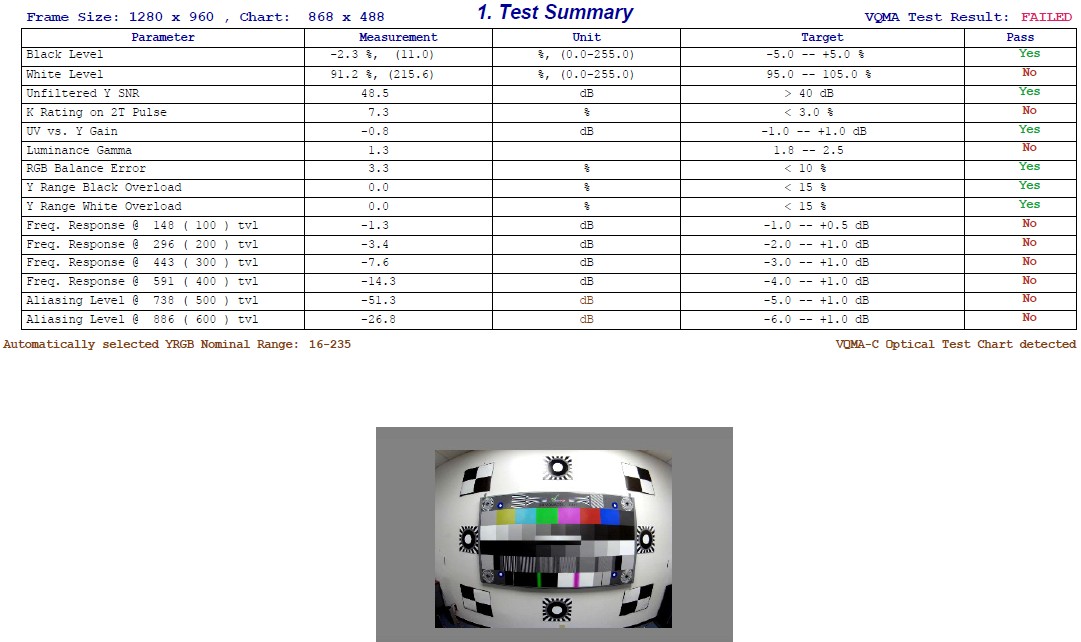

• User-selectable reporting modes:
  a) machine-readable file with Pass/Fail marks,
  b) detailed multi-page PDF document
• Manual or automated performance measurement of video cameras, video processors, video capture devices and/or complete video systems
• Combined with an appropriate capture device, VQMA-3 measures quality of 3G-SDI/HD-SDI, DVI/HDMI or YPrPb video signal

======= Target Applications =======

• Engineering & Development
• Video Conference Systems Installation & Calibration
• Acceptance Tests & Benchmarking

======== VQMA-3 Features =======

• Software executable under WindowsTM (XP, Vista, Windows 7)
• Auto-analysis on the companion VQMA-C Matrix Test Pattern
• VQMA-C formats: Optical Chart, File, Generator/Player Test Signal
• Built-in Software Scope: YUV/RGB waveform monitor
• Noise Measurement and Scope work on any static .YUV image
• Windows GUI mode for R&D and product verification
• DOS batch mode for automated QA/QC operations

======= Analyzed Parameters ======

• Geometry: Scaling, Position, Tilt, Keystone
• Levels: Black, White, Color Balance, Gamma
• H & V Shading (Levels Spatial Uniformity)
• Frequency Response: in dBs vs. scalable tvl
• UV vs. Y Gain (Color Saturation)
• K-rating on needle pulse
• Comprehensive Noise Analysis

======== VQMA-3 Versions ========

Main VQMA3 version of the software can analyze .YUV files created by video decoders or captured via standard capture devices, such as AJA KONA card

VQMA3U version of the software can also receive test pattern YUV or RGB data directly from Unigraf capture card - via shared memory, without any intermediate file recording. Thus, it is capable to analyze any YUV/RGB data, even the data coming from HDCP protected sources

Simplified VQMA3F ('field') version does not support YUV/RGB Scope features

Analysis of video files in lower resolutions SD formats, such as NTSC/PAL/SECAM is possible with the previous VQMA versions, the latest is VQMA 2v4 :

VQMA-2 – NTSC/PAL Software Video Analyzer

=== VQMA-3 Test Pattern Sources ===

VQMA3 Matrix Test Pattern is available as:

1. VQMA-C - companion optical test chart in a variety of sizes: from handy 12"x7" to large wall-mounted 82"x46"
2. Compressed .TS/.M2TS files or uncompressed .YUV/.AVI files in a variety of resolutions and formats
3. HDMI or HD-SDI signal at the outputs of VideoQ Reference Players:

VQS-300 – HDMI/3G-SDI Reference Media Player

VQS-200 – HDMI/SPDIF Reference Media Player
